Hebei Oushang Photovoltaic Technology Co., Ltd
|
OS-M60-250W~280W Monocrystalline Photovoltaic Module 60 cells solar panel manufacturer
| Payment Terms: | T/T |
| Place of Origin: | Hebei, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail

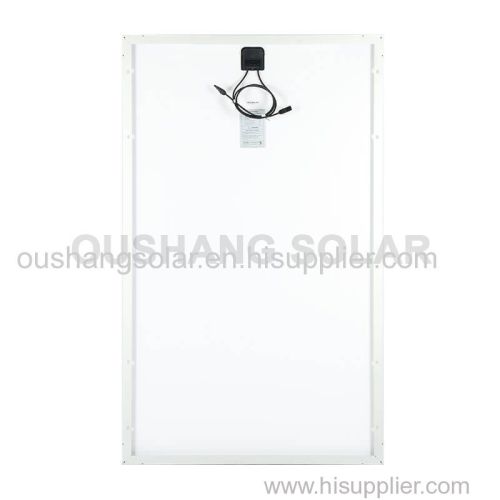

OS-M60-250W~280W Monocrystalline Photovoltaic Module 60 cells solar panel manufacturer
OS-M60-250W~280W Monocrystalline Photovoltaic Module 60 cells solar panel manufacturer
Key Parameters
Cell | Mono |
No. of cells | 60 |
Rated Maximum Power (Pmax) | 250W~280W |
Junction Box | IP67 |
Maximum System Voltage | 1000V DC |
Operating Temperature | -40℃～+85℃ |
Connectors | MC4 |
Model | OS-M60-250 | OS-M60-270 | OS-M60-280 |
Cell | MONO | MONO | MONO |
Max Power | 250W | 270W | 280W |
Max Power Voltage | 30.5V | 31.5V | 31.5V |
Max Power Current | 8.20A | 8.57A | 8.89A |
Open Circuit Voltage | 36V | 38.05V | 38.86V |
Short Circuit Current | 9.02A | 9.08A | 9.22A |
Number of Cells | 60(6*10) | 60(6*10) | 60(6*10) |
Size of Cells (mm) | 156*156 | 156*156 | 156*156 |
Dimensions(mm) | 1640*992*35 | 1640*992*35 | 1640*992*35 |
Maximum system voltage | 1000VDC | ||
Junction Box Protection | IP67 | ||
Cables | 4mm2 | ||
Connector | MC4 | ||
Max wind load | 2400Pa | ||
Max snow load | 5400Pa | ||
Operating Temperature | -40℃~+85℃ | ||
Power Tolerance | ±3% | ||
Hebei Oushang Photovoltaic Technology Co., Ltd has focus on solar panel production in China since 2014.The auto production is able to supply three containers per day. We have shipped thousands of containers of solar panels to all over the world. Our products are exported to Europe, Middle East, South America, Southeast Asia and Africa. The factory and products are qualified by TUV.
